Simarine PICO akude monitor

PICO battery monitor can monitor up to 6 battery banks, 14 tanks and 20 independent current sensors. Thanks to unique Real Time Battery Health™ algorithm it offers precise battery health measurements.

548 788

Clear
  • Kirjeldus
  • Additional information

Kirjeldus

Simarine PICO 399€
Barograafiga versioon Simarine PICO+ 499€

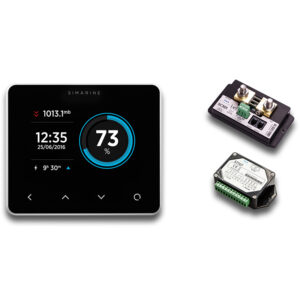

Vajab lisaks ühte või mitut moodulit akude ja/või paagi sensorite ühendamiseks (vastavalt soovile):
SC300 1 x 300A shunt – 149€
SC500 1 x 500A shunt – 189€
SCQ25 4 x 25A voolumõõtja – 159€
SCQ25T 4 x 25A voolumõõtja + 4 x temperatuuri/paagi sensor + 3 x digitaalne paagi sensor / aku pinge – 289€
ST107 4 x temperatuuri/paagi sensor + 3x digitaalne paagi sensor / aku pinge – 169€
Palun võtke komplekti tellimiseks ühendust – pood@merevarustus.ee / 5043242

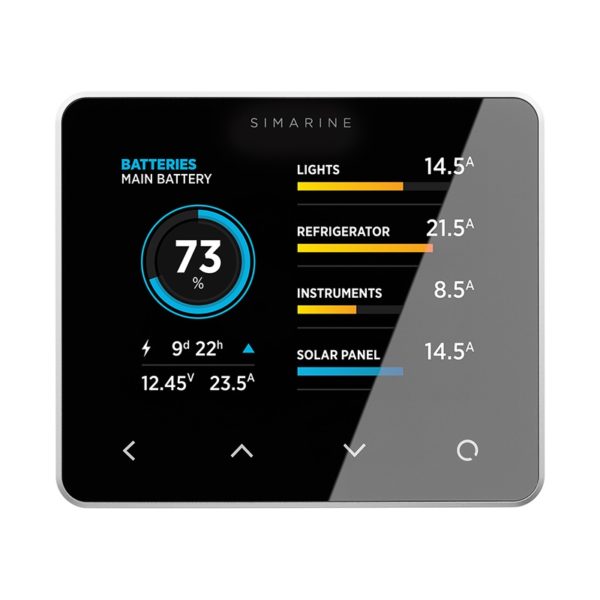

Simarine PICO sets new standards for marine battery monitors in fields of design, functionality, connectivity and
ease of use.

The casing of the main is CNC-milled from a single piece of high quality 6000 series anodized aluminium (corrosion-proof). The display is covered with thick Gorilla Glass with Anti-Reflective coating. To improve the overall image quality and to prevent the condensation, the cover glass is optically bonded with high contrast 3.5” inch IPS LCD screen with wide viewing angles and good sun legibility, also with polarized sunglasses. The casing is water- and dustproof, compliant with the standard IP67. The device is operated by four water tolerant Capsense touch buttons.

PICO is equipped with a Wi-Fi module and communicates with Android and iOS smartphones. All the data on PICO are accessible on a smartphone. You can also restore the settings stored on your smartphone and perform a firmware upgrade of PICO.

Charging and discharging history: 3 months on device, unlimited on smartphone app.

General specification:

Display: LCD TFT 3,5” High resolution IPS, Gorilla Glass, anti-reflective coating
Human interface: 4 Touch buttons, water resistant
Enclosure: CNC-milled anodized aluminum, water- and dustproof
Dimensions: HxWxD 98 x 84 x 11 mm

Technical specifications

Operating voltage 6 – 35 V
Power consumption at 12V
Operating, wifi on, 100% illumination 90 mA
Operating, wifi off, 70% illumination 35 mA
Stand by, wifi off, 0% illumination 18 mA
Power off, logger still active 5 mA
Max number of connections
Battery banks 6
Current sensor channels 20
Temperature sensors: 10
Tank level sensors: 14



Additional information

Raami värv

Must, Hõbe

Versioon

Pico, Pico+ (barograafiga)

Lisamoodul

SC300, SC500, SCQ25, SCQ25T, ST107
