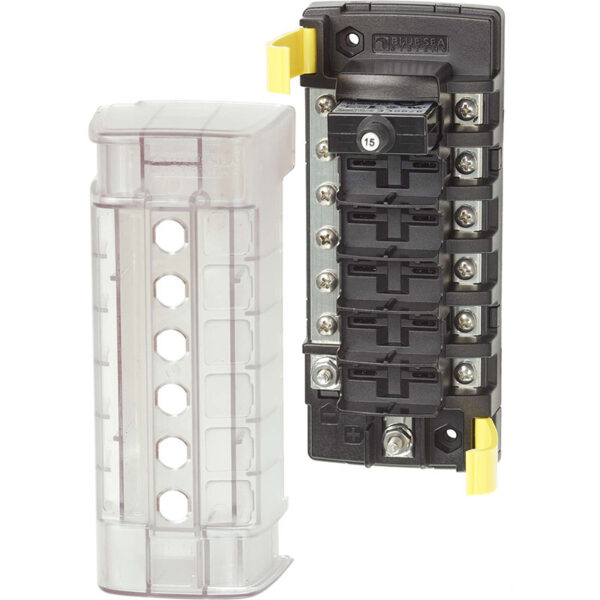

Blue Sea automaatkaitsmete paneel 6x
Maksa kolmes võrdses osas: 3 x 22.33 € (ESTO)
67.00 €
- Quick connect clips allow circuit breakers to snap easily into place
- Tin-plated copper busses and screw terminals
- Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
- Easy to open clip on cover
- Breakouts allow wire access in two directions
- Accepts ring terminals
- Kirjeldus
- Kirjeldus
Kirjeldus
| Specifications | |
|---|---|
| Circuits | 6 |
| Maximum Amperage | 100A (per block) 32A (per circuit) |
| Maximum Voltage | 32V DC |
| Mounting | #8 Screw (M4) or #8 Nut |
| Negative Bus | #10-32 Stud |
| Positive Bus | #10-32 Stud |
| Source | Common Source |
| Minimum Operating Temperature | -10° C |
| Maximum Operating Temperature | 60° C |
| Mounting Centers | 143 mm |
| Screw Terminal Type | #8-32 Screws with Captive Star Lock Washer |
| Height | 169.93 mm |
| Weight | 0.34 kg |
