Blue Sea massilüliti I-II-off
Maksa kolmes võrdses osas: 3 x 17.33 € (ESTO)
52.00 €

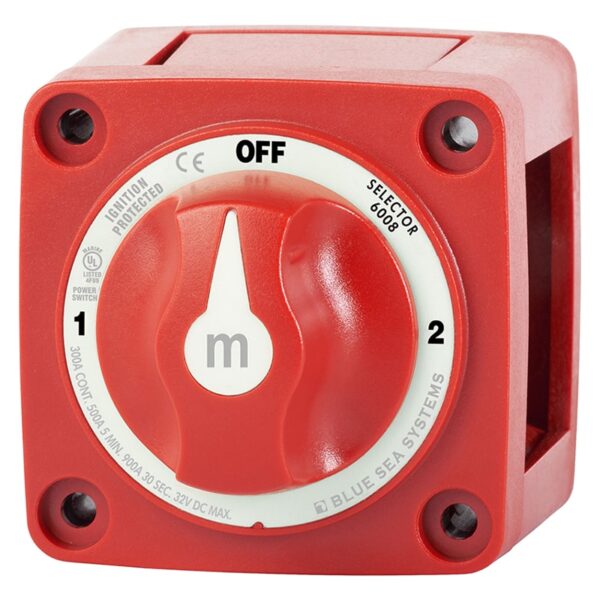

Switches a single battery (I or II) to a single load group.
- Ignition protected—safe for installation aboard gasoline powered boats
- Case design allows surface or rear panel mounting
- Kirjeldus
- Kirjeldus
Kirjeldus
| Switch Type | Selector 3 Position |
| Color | Red |
| Switch Positions | 3 |
| Battery Combine | No |
| Alternator Field Disconnect | No |
| Maximum Voltage | 32V DC |
| Stud Size | 3/8″ |
| Terminal Stud Torque | 120 in-lb (13.56 Nm) |
| Continuous Rating | 300A |
| Intermittent Rating | 500A (5 min) |
| Cranking Rating 30 sec | 900A |
| Battery Inputs | 2 |
| Cable Clearance For 4/0 AWG Cables | 1.12in (28.45 mm) |
| Cable Size to Meet Ratings | 4/0 AWG (120mm²) |
| Mounting Holes | Accept #10 Screw |
| Stud Material | Tinned Copper |
| Stud Torque | 120 in-lb (13.56 Nm) |
| Terminal Stud Size | 3/8″ – 16 (M10) |
| Weight | 0.77lb (0.35 kg) |
