Scout GPS-GLONASS antenn

Soodus

Scout GPS-GLONASS antenn

94  49

NAV-6 is an active GPS and GLONASS antenna especially designed for the marine environment. It combines the high performance GPS patch antenna and a 27 dB low noise amplifier (at 5V DC) into a compact waterproof antenna with exclusive design.

Tootekood: NAV-6

Kirjeldus

NAV-6 enables the required GPS function for AIS systems, chartplotters, and other navigational devices, and helps boost the reception signal to the GPS unit, especially when the GPS receiver doesn’t have a good view of the sky. NAV-6 minimizes temporary loss of signal during navigation and maintains the best possible accuracy by having a lock on the greatest number of satellites.

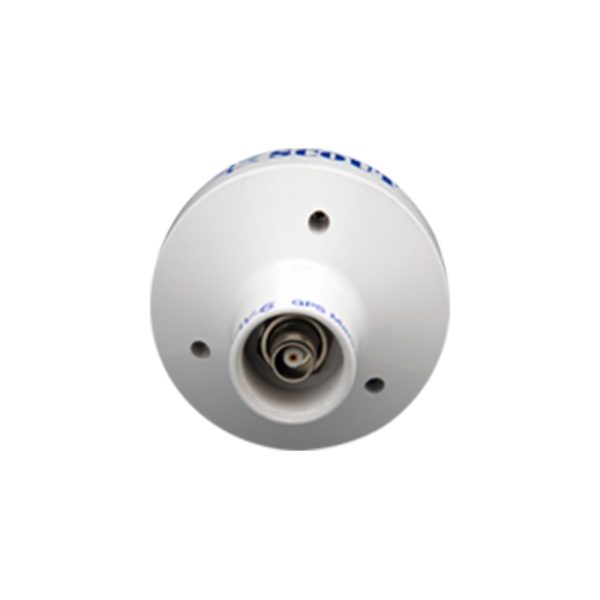

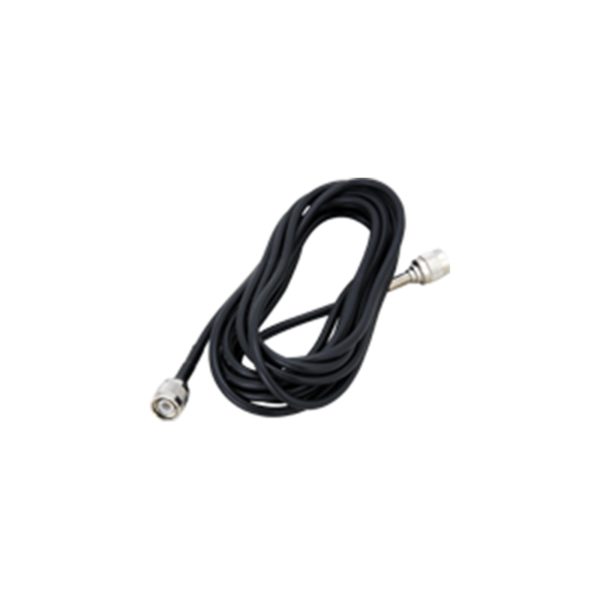

NAV-6  is supplied with deck mount, mounting set and a 10 m RG58 cable with TNC male connectors. Standard 1″ x 14 threads for pole mounting.

Technical specifications
 Frequency  1572-1610 MHz
 Impedance  50 ohm
 Polarization  Vertical
 LNA Gain  27 dB (5V), 26 dB (3V)
 V.S.W.R.  < 1,2:1
 Voltage supply  2,7V – 5,5V
 Current  15 mA to 25 mA
 Power (max)  138 mW
 Operating temp.  -40°C to +85°C
 Construction  Fully waterproof
 Mounting  Deck/pole 1″ x 14 thread
