Scout VHF Slim fiberglass antenn 1m
Maksa kolmes võrdses osas: 3 x 18.00 € (ESTO)
54.00 €

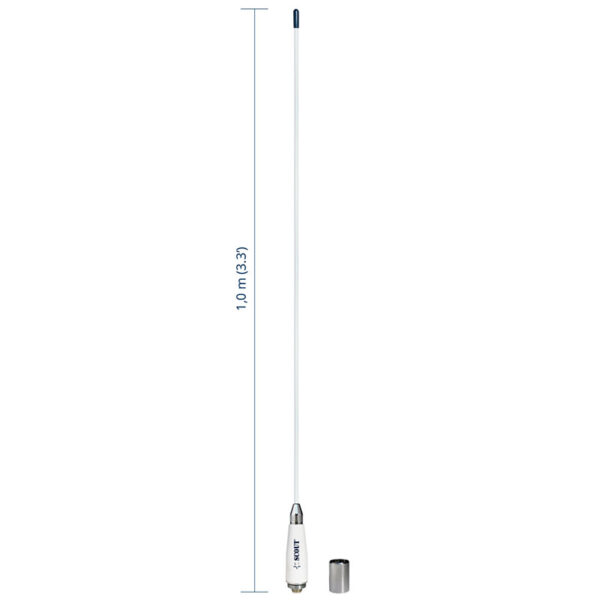

White fiberglass rod UV-inhibited can be easily removed by hand whenever not needed, the SO 239 type connector for a simple connection of the coaxial cable, the stainless steel 1” x 14 thread adaptor to enable a fast installation of the antenna on any kind of deck mount, rail mount and bracket.
- Kirjeldus
- Kirjeldus
Kirjeldus
Technical specifications
| Frequency | 156-162 MHz |
| Impedance | 50 ohm |
| Electrical length | 1/2 λ |
| V.S.W.R. | < 1,5:1 |
| Polarization | Vertical |
| Gain | 3 dB |
| Max power input | 50 W |
| DC ground | Yes |
| Whip material | Fiberglass |
| Connector | SO 239 |
| Mounting | 1″ x 14 thread adaptor |
| Length | 1,0 m (3.3′) |
| Weight | 0,40 kilo |
