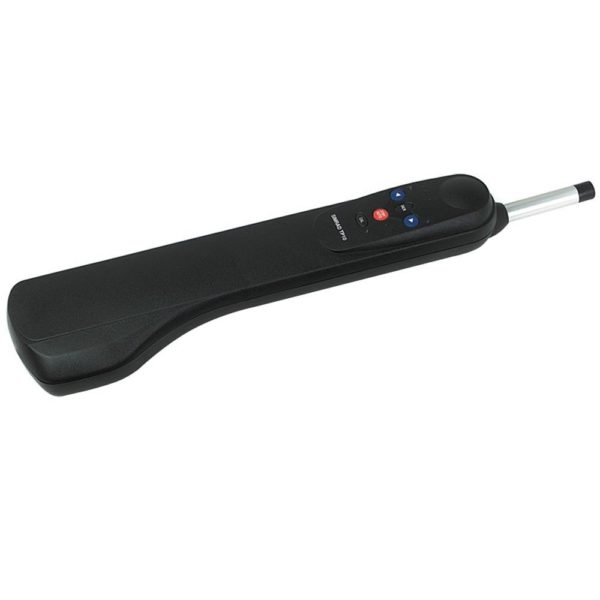

Simrad pinnipiloot TP10

Simrad pinnipiloot TP10

460

The TP10 delivers reliable auto steering for boats with tillers up to 32ft in length. Simple, straightforward controls and a precise steering system – normally only found on higher-end models – combines in a quiet package with extremely low power draw to allow sailors a safe passage in coastal waters.

Tootekood: 96019
  • Kirjeldus

Kirjeldus

Technical/Environmental

Operating Temperature -10° to +55°C
Operating Temperature Stored -10° to +55°C
Product Width 105 mm / 4.1 in
Product Depth 60 mm / 2.4 in
Product Height 610 mm / 24 in

Power

Power Supply (Supply Voltage) 12Vdc (10.8 – 16Vdc)
Power Consumption Auto 0.5A
Power Consumption Standby 0.06A

Other

Adjustable Gain True
Alarm Audible And Visible True
Automatic Tracking True
Auto Trim True
Gain 1-9
Night Illumination True
Non Volatile Memory True
Storm Proof True
Auto Seastate True

Autopilot/Auto-Steering

Intelligent Steering Action True
Max Boat Length [m] 10
Mounting Selectable Port Or Starboard True
Peak Thrust 65kg
Drive System Screw thread
Fluxgate Compass True
Max Boat Displacement [tons] 3.7
