Airmar DST810 tridata SeaTalkNG Bluetooth andur

Maksa kolmes võrdses osas: 3 x 149.67 € (ESTO)

449.00 €

Läbi kere Sügavuse-Kiiruse-Temperatuuri ja kaldenurga andur. Kompaktne, eemaldatav plastikust andur edastab andmed SeaTalkNG võrku + üle bluetoothi.

SKU: E70667

Kirjeldus

For a product to be considered “breakthrough,” it has to vastly change conventional behavior and enhance abilities. The new DST810 Smart Multisensor, together with Airmar’s CAST™ App, is the convergence of advanced hull data, matched with a simple and reliable way to calibrate accurate speed via a wireless device. This changes how boaters receive and deliver information to get greater performance from their hull. It is a simple, consistent way to calibrate speed-through-water regardless of what display system is on board. The DST810 and Airmar CAST App deliver capabilities that until now, were only available through expensive PC based software.

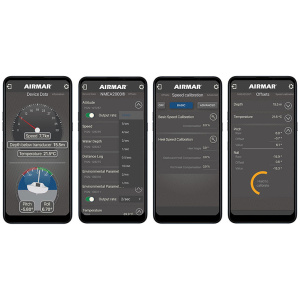

Besides water temperature, depth and newly upgraded 5 Hz (5X per second) speed-through-water output, the DST810 features an integrated attitude sensor for heel and trim data. This information, combined with Airmar’s powerful and simple CAST App, makes heel-compensated speed calibration across multiple heel angles and speed ranges both fast and intuitive, and is independent of the onboard instruments.

All speed calibrations and NMEA configurations are stored in the DST810 sensor—not in the displays.

Specifications

  • Weight:
    • 0.9 kg (2.0 lb)—Plastic
  • Acoustic Window: Urethane
  • Hull Deadrise: Up to 22°
  • Data Update Rate:
    • Depth: 1X/second
    • Speed: 5X/second
    • Heel/Trim: 10X/second
  • Attitude Accuracy: +/– 1° nominal after sensor calibration
  • Depth Frequency: 235 kHz
  • Minimum Depth Range: 0.5 m (1.6′)
  • Maximum Depth Range: Up to 100 m (330′)
  • Speed Range: Up to 45 knots
  • Pressure Rating: 3 m (10′)
  • Pulse Rate: 20,000 p/nm* (5.6 Hz per knot)—*p/nm = pulses per nautical mile
  • Supply Voltage: 9 VDC to 16 VDC
  • Supply Current: <200 mA
  • Wireless Protocol: Bluetooth Low Energy (BLE)
  • Wireless Range: Up to 30 feet depending on mount location
  • Standard Cable Length: 6 m (20′)
  • Temperature Sensor Accuracy: ±0.5°C (±1.8°F)
  • Temperature Sensor Range: -10°C to 40°C (14°F to 104°F)
  • NMEA 2000 Load Equivalency Number (LEN): 3
  • CE Regulation: Complies to IERC60945
