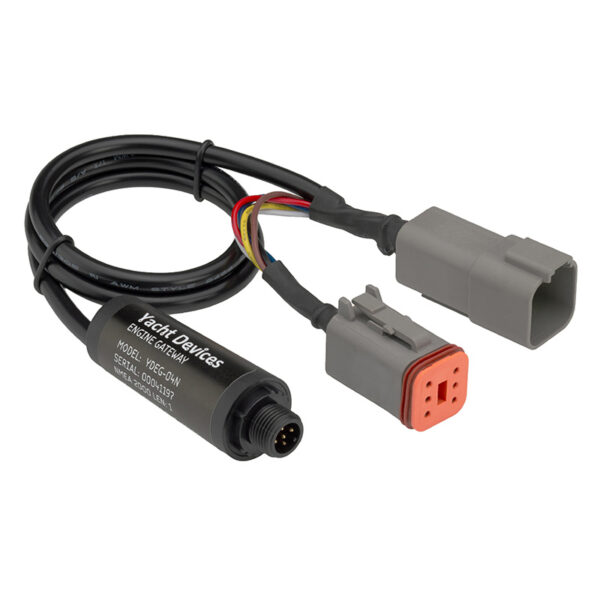

Yacht Devices NMEA2000 Engine Gateway

Maksa kolmes võrdses osas: 3 x 63.33 € (ESTO)

190.00 €

This engine gateway can be used to transfer the data of Volvo Penta EVC engines (year of manufacture 2002 and later) to an NMEA2000 network, giving you the optimal overview of speed, voltage, temperature, oil pressure and much more on your multifunctional display.
Also suitable for Mercury/Mercruiser engines with an optional adapter cable.

SKU: 915311

Kirjeldus

With the YDEG-04 engine gateway you can transfer the data of Volvo Penta EVC engines (from year of manufacture 2002) to an NMEA2000 network. This gives you an optimal overview of the engine speed, voltage, temperature, oil pressure and much more on your multifunctional display or other end devices.
The interface has a standard 6-pin deutsch plug/socket, so it can be easily integrated into the engine network (e.g. in front of the rev counter). Engine malfunction does not occur, because the interface only sends data and does not receive it. Configuration is done via a text file, which must be saved on an optional microSD card and subsequently inserted into the existing card slot.
With an optional adapter cable, also suitable for Mercury / Mercruiser engines.

Specifications

  • Operating voltage via the NMEA2000 network
  • Current consumption: 38 mA (1 LEN)
  • Cable length: 500 mm
  • Housing length of the device (without connections): 54 mm
  • Certified by the National Marine Electronics Association
