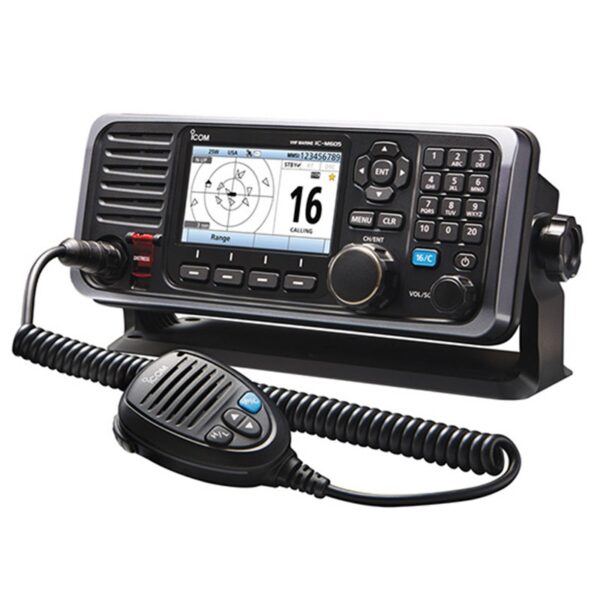

Icom M605 Euro
This new model offers many exceptional features including Active Noise Cancelling technology, a ‘last call voice recording function’ and an integrated AIS receiver allowing you to monitor real-time AIS vessel traffic information on the radios’ large colour TFT LCD. One of its selling points is that it provides a multi station platform giving you the capability of connecting up to three command stations providing radio operation/intercom via either RCM600 Remote Stations or HM-229 Commandmics in different parts of a vessel.
- Additional information
Multi Station VHF/DSC Radio with AIS Receiver
The IC-M605EURO is an advanced Class D VHF/DSC radio with integrated AIS receiver, capable of showing real-time AIS vessel traffic information on the large colour TFT LCD display. This radio contains many advanced features including Active Noise Cancelling technology, a sophisticated reciever and a last call voice recording function that saves up to two minutes of an incoming call. The IC-M605EURO also has the capability of connecting up to three command stations on a vessel, allowing operation/intercom via either RCM600 Remote Stations or HM-229 Commandmics. This makes it a great communication system for large yachts or motor cruisers.
Up to Three COMMAND HEAD/COMMANDMIC™
The IC-M605EURO can be configured into a multi-station onboard VHF Radio system. The radio can be remotely controlled with up to three controllers, RC-M600 COMMAND HEAD and/or HM-229B/W COMMANDMIC™, with an intercom function available among the main radio and controllers. This will provide maximum operating flexibility anywhere on your boat.
Wide Viewing Angle 4.3” Colour TFT LCD
A high resolution colour LCD provides an almost 180 degree very wide viewing angle and displays characters and function icons clearly. The night mode display ensures good readability in the dark for further convenience.
Integrated AIS Receiver
The integrated AIS receiver shows real-time AIS vessel traffic information on the display. The AIS combo screen enables you to monitor the AIS plotter during basic operation. You can directly call a selected AIS target from the AIS screen using an individual DSC call.
Intuitive User Interface
The combination of the directional keypad and soft keys provides simple operation. The most common functions are assigned to soft keys (at the bottom of the display) for quick push function access. The large ten-key pad enables you to smoothly enter channel numbers, MMSI numbers with ID names and so on.
Class Leading Receiver Performance
A weak signal adjacent to a strong signal can be clearly received by the IC-M605EURO. Its commercial grade receiver performance (selectivity and IMD: more than 75 dB) provides reliable communication at all time.
Active Noise Cancelling Technology
The Active Noise Cancelling technology digitally removes background noise from both transmit and receive audio and provides clear communication in a noisy maritime environment. The last call voice recording function automatically saves up to two minutes of an incoming call. Don’t miss any incoming messages.
Last Call Voice Recording
The last call voice recording function automatically saves up to two minutes of an incoming call. Don’t miss any incoming messages.
Provides Clear, Loud Audio
The IC-M605EURO’s internal speaker enhances intelligibility of received calls. The waterproof speaker cone provides superior sound quality with a wide frequency range and a flat frequency response for powerful, yet clear audio.
Integrated GNSS Receiver
The GNSS (GPS, GLONASS and SBAS) receiver is integrated in the IC-M605EURO. Position information can be simply received with connection to the supplied GNSS antenna with 5 m cable, UX-241.
30 W Two-Way Hailer and Automatic Foghorn
When connected to the optional SP-37 horn speaker, you can talk with crew on the deck or shore from the radio’s microphone and can hear any reply via the horn speaker. Also available the RX hailer function and four patterns of automatic foghorn.
NMEA 2000™, NMEA 0183/-HS Connectivity
Using NMEA 2000™ connectivity, the radio can exchange GNSS, AIS reports, DSC call information data, radio frequency and PGN list data on the network. NMEA 0183/-HS GNSS position data can also be converted to NMEA 2000™ data for other equipment.
Optional Voice Scrambler
With an optional voice scrambler unit, UT-112, the IC-M605EURO provides 32 tone secure conversation. This function is useful when you want to share private information with consort ships.
• IPX8 advanced waterproof (1m depth of water for 60 minutes)
• Dual and Tri-watch functions
• AquaQuake™ draining function
• Instant-access button for Channel 16 and call channel
• The supplied HM-205RB speaker microphone can be connected to the rear panel of the IC-M605EURO
- Multi-station VHF system which will allow up to three COMMAND HEAD/COMMANDMIC to be connected
- Easy to read Colour TFT LCD with Wide 4.3” Viewing Angle
- Integrated AIS Receiver
- Intuitive User Interface
- Class Leading Receiver Performance
- Active Noise Cancelling Technology
- Last Call Voice Recording
- Integrated GNSS Receiver
- 30 W Two-Way Hailer and Automatic Foghorn
- NMEA 2000™, NMEA 0183/-HS Connectivity
Distress nupp, Sisseehitatud GPS antenn, AIS vastuvõtja, NMEA0183, NMEA2000
